Fiber Optic Gooseneck Light Guide

Fibre optic light guides for light sources

Fiber-Optic Gooseneck Light Guide

Product Specifications

  • Item Nr: 595-20-167
  • Diameter (active) at light source: 4.5 mm
  • Mechanic Diameter at light source: 15 mm
  • Length: 550 mm
  • Usable for: PL, F1, F3000, F5100

Product Overview

Product details

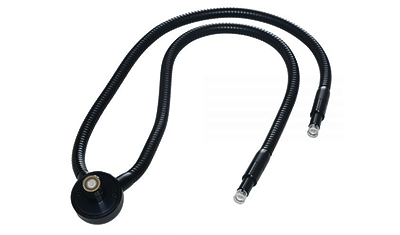

The Photonic Fiber-Optic Combi-Light Guide combines a gooseneck light guide with a flexible light guide, providing users The Photonic Fiber-Optic Combi-Light Guide combines a gooseneck light guide with a flexible light guide, offering enhanced flexibility for positioning the light source.

This design provides precise illumination, with the rigidity of a gooseneck for stable positioning and the adaptability of a flexible light guide for dynamic adjustments.

  • Flex Arm for optimal positioning
  • Usable for: PL, F1, F3000, F5100
  • Length: 550 mm, FLEX: 750 mm
  • Focus lenses and color filters available
